Fabric properties
Blackout
Polyester acrylic-coated
375 g/m²
0.70 mm
275 cm
280 cm
Features / Technical properties
4-5
Alpha-w = 0.35
Flame retardant
Fabric must be turned
Oeko-Tex
Special colours from 500 m
Washing instructions
-0%
-1.5%
Iron only on the face (front) side!
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

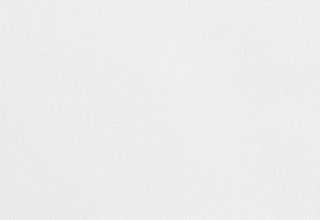

| Colour 41 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 72.3 | As(%) 27.7 | Tuv(%) 0.00 | Fc() 0.46 | gtot() 0.33 |

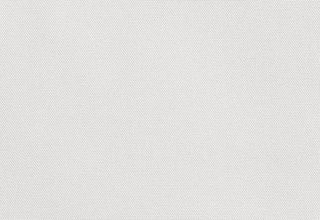

| Colour 42 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 75.8 | As(%) 24.2 | Tuv(%) 0.00 | Fc() 0.43 | gtot() 0.31 |

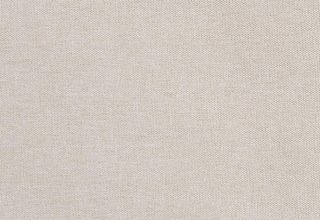

| Colour 43 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 76.5 | As(%) 23.5 | Tuv(%) 0.00 | Fc() 0.43 | gtot() 0.31 |

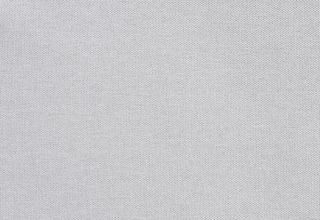

| Colour 44 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 70.4 | As(%) 29.6 | Tuv(%) 0.00 | Fc() 0.47 | gtot() 0.34 |

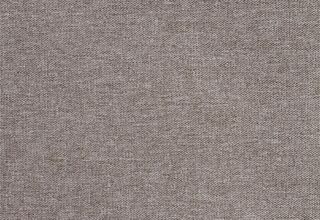

| Colour 45 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 72.9 | As(%) 27.1 | Tuv(%) 0.00 | Fc() 0.45 | gtot() 0.33 |

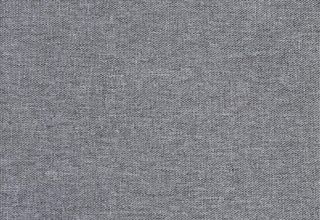

| Colour 46 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 68.6 | As(%) 31.4 | Tuv(%) 0.00 | Fc() 0.48 | gtot() 0.35 |

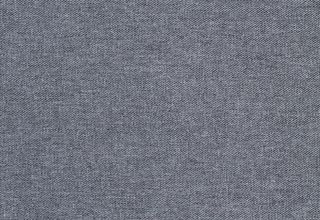

| Colour 47 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 68.4 | As(%) 31.6 | Tuv(%) 0.00 | Fc() 0.48 | gtot() 0.35 |

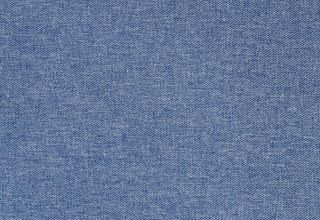

| Colour 48 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 73.8 | As(%) 26.2 | Tuv(%) 0.00 | Fc() 0.45 | gtot() 0.32 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 41 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
| Colour 42 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
| Colour 43 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
| Colour 44 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
| Colour 45 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
| Colour 46 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
| Colour 47 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 48 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 0 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
